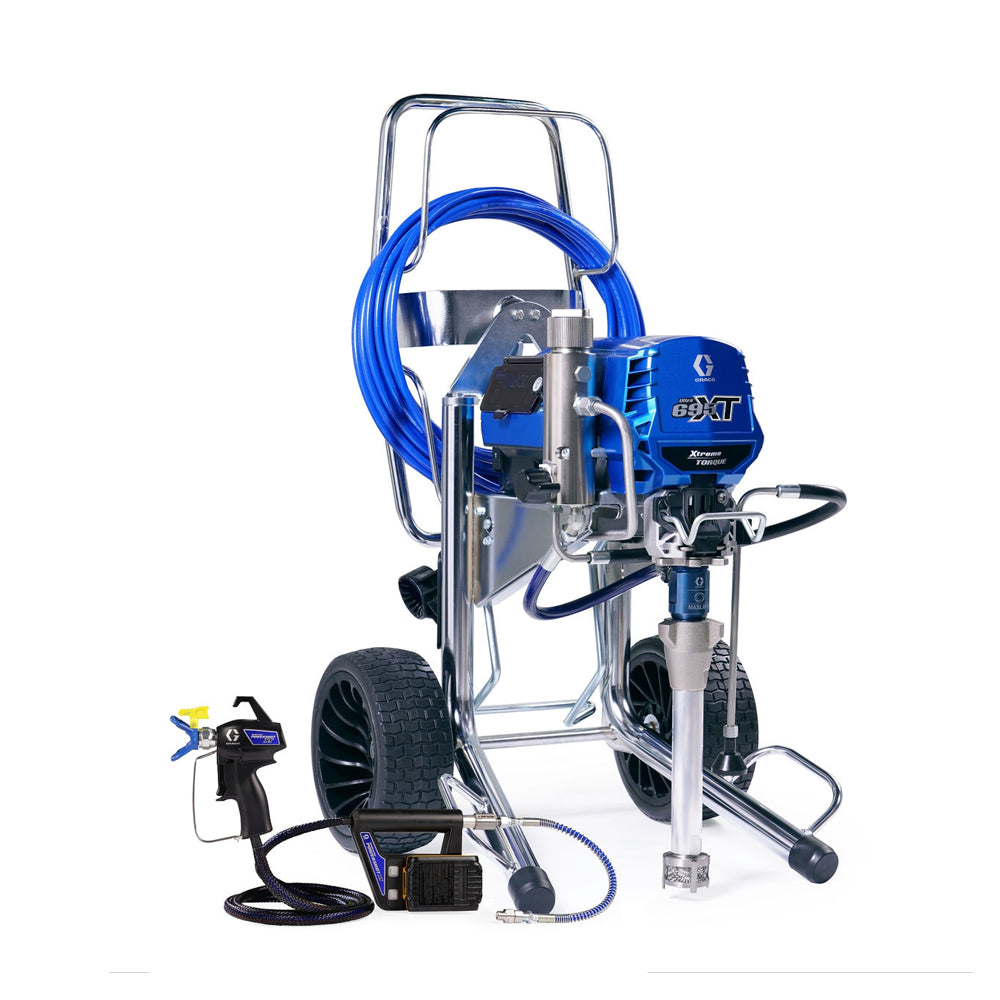

For the first time, the most advanced airless spray gun on the market is integrated with Graco’s leading sprayers – creating a complete system built to maximize productivity. The Contractor PowerShot Standard and XT models combine with Ultra®/Ultimate™ airless sprayers to deliver precision, ease of use, and reduced fatigue, so contractors can work smarter and get the job done right – every time.
Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.
-
Virtually eliminates spits and starts – instant response trigger actuates 80x faster than traditional guns, giving you the best possible finish and improved finish quality.
-
Industry's lightest gun – it is the lightest gun ever built, at 0.08 pounds, 30% lighter than other spray guns, enabling all day spraying with less fatigue.
-
Lightest trigger pull force – all day comfort with 80% less force on each trigger pull. It allows for precise control and smoother application.
-
Xtreme Torque Motor Technology – 15X more torque than traditional motors, 8X more magnets provide unmatched power and performance
-
Rapid-Response Pressure Control – instantly responds to deliver the best finish quality with the industry’s largest operating pressure range (50-3,300 psi)
-
Endurance Vortex Piston Pump – Endurance Vortex Rod lasts 3X longer than the closest competitor. Pro Connect Pump Removal for fast on-the-job service.
Technical Specifications:
| Fluid Outlet Size (in) |
1/4 |
| Fluid Outlet Thread Type |
NPSM |
| Frame Configuration |
Hi-Boy |
| Gun Included |
1 |
| Gun Model |
Contractor PowerShot XT |
| Gun Technology |
Airless |
| Maximum Flow Rate (GPM) |
1.05 |
| Maximum Fluid Working Pressure (psi) |
3300 |
| Maximum Tip Size (in) |
.031 |
| Maximum Working Pressure (MPa) |
22.8 |
| Maximum Working Pressure (psi) |
3300 |
| Minimum Generator Power (W) |
5000 |
| Minimum Working Pressure (psi) |
50 |
| Model |
Ultra |
| Overall Height (in) |
41.3 |
| Overall Length (in) |
27.5 |
| Overall Width (in) |
22.6 |
| Product Series |
ProContractor |
| Series |
695 XT |
| Type |
Airless Sprayer |
| Voltage (V) |
120 |
| Weight (lb) |
112 |
